The ACP dosing unit

The ACP dosing unit

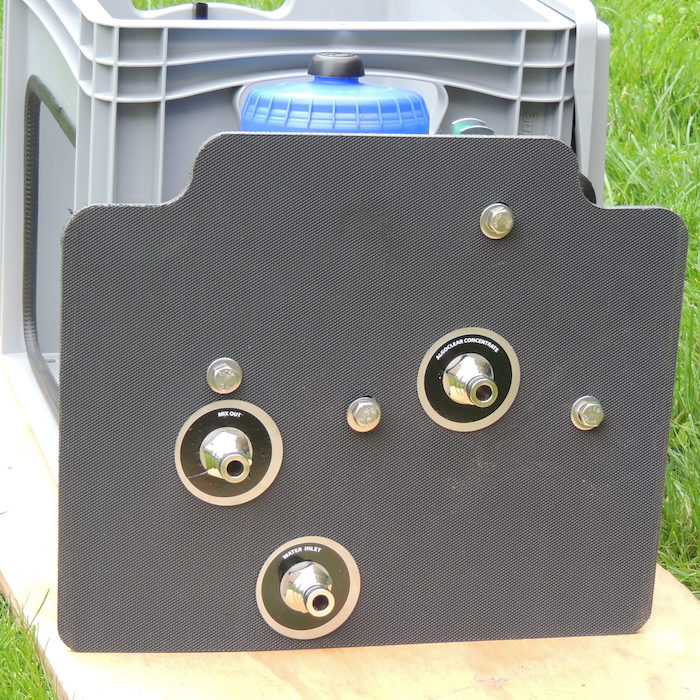

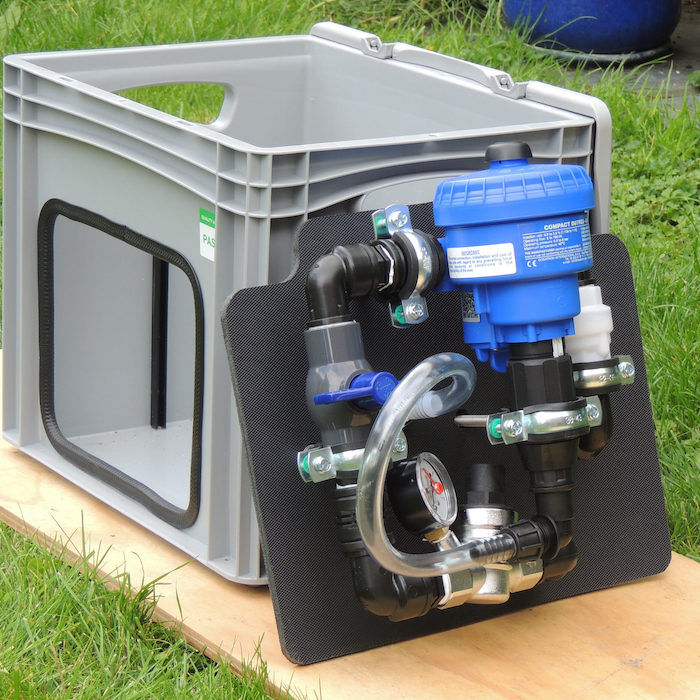

Dosing unit calibrated for the range of concentrations in use with the ACP biocide. The unit consists in the circuitry affixed to a rigid board, itself sliding in an enclosure. Average water pressure is sufficient to obtain a good fan spray. If not or if the work is at height connect a booster pump to the water inlet.

Injection range: 0.8 – 5.5%

Minimum pressure: 0.3 bar

Set operating pressure: 5.5 bar

Flow capacity: 11 litre/minute

Pressure protection: Up to 16 bar peak

Maximum temperature: 40oC.
